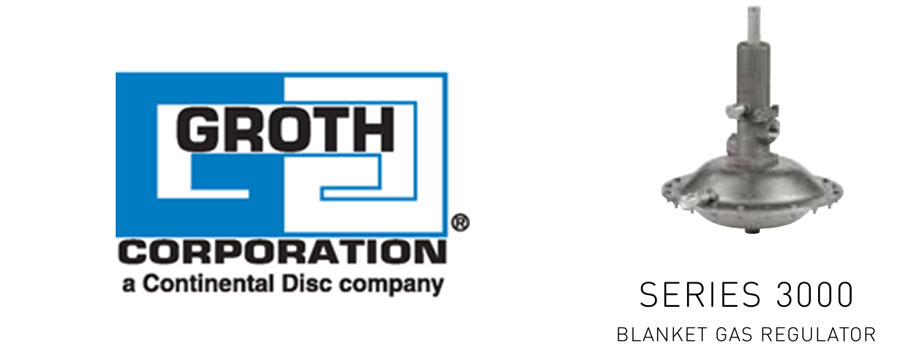

Series 3000: Blanket Gas Regulator

FEATURES & BENEFITS

• Modulating action ensures the valve only opens as much as necessary, which lowers operational cost by conserving product
• Direct acting, patented forcemultiplying linkage allows for a compact size and low weight solution
• Field adjustable orifice selector allows flow selection from: 25%100% for 1/2” and 5%-100% for 1”
• Setting is unaffected by fluctuations in blanket gas supply pressure, providing reliable, repeatable performance

TECHNICAL DETAILS

• Available in 1/2” and 1” (DN15, DN25)
• Settings from 0.5 InWC to  15 psig (1.24 mbarg to 1.03 barg)
• Molded PFA Actuator Diaphragm
• Wide selection of elastomeric seal materials
• Available in stainless steel  or other materials by request
• Field adjustable flow capacity (25%-100% for ½”, 5%-100% for 1”)
• ATEX Approval (3011L & 3011H)
• Canadian Registration (CRN)
