Groth Corporation - Series 1400: Pilot Operated Pressure/Vacuum Relief Valve
GROTH CORPORATION - a Continental Disc company

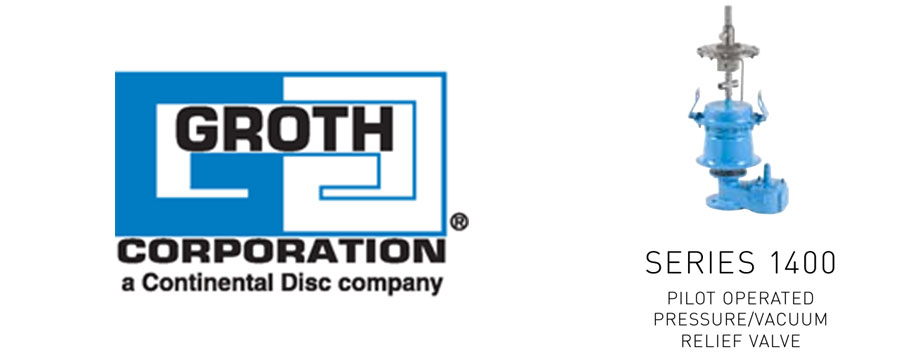

Series 1400: Pilot Operated Pressure/Vacuum Relief Valve
FEATURES & BENEFITS
- Rated flow at less than 10% overpressure provides the ability to operate closer to the tank MAWP, increasing the operating range of the process
- Flexibility in snap or modulating action allows product customization to specific application requirements
TECHNICAL DETAILS
- Sizes 2” through 12” (DN50-DN300)
- 150# ANSI, PN10, PN16, JIS drilling classes available
- Pressure settings from 2 InWC to 15 psig (4.98 mbarg to 1.03 barg)
- Vacuum settings from 1/2 osig to 12 psig (2.15 mbarg to 827 mbarg)
- Carbon steel, stainless steel, aluminum and other materials available
- ATEX and PED Approval
MORE INFO NEEDED ABOUT GROTH CORPORATION PRODUCTS?
Visit our Groth product page to find the full product selection guide (pdf) or visit our Groth Corporation - Industrial product selection guide.
