Groth Corporation - Series 1360A: Vacuum Relief Valve (Side Mount)

GROTH CORPORATION - a Continental Disc compan

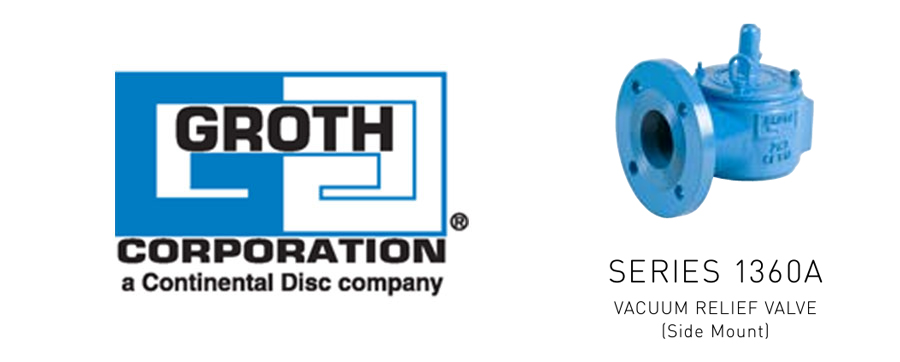

Series 1360A: Vacuum Relief Valve (Side Mount)

FEATURES & BENEFITS

• Optional flanged inlet connection allows relief capacity to be piped in, instead of pulled directly from the atmosphere
• Peripheral and central seat guides ensure reliable, repeatable  performance
• A wide seat and air-cushion seal keeps leakage low long after the valve is put in service
• Fluoropolymer seating diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture

TECHNICAL DETAILS

• Sizes 3” through 14” (DN80-DN350)
• 150# ANSI, PN10, PN16,  JIS drilling classes available
• Vacuum settings 0.5 osig to  12 psig (2.15 mbarg to 827 mbarg)
• Available in aluminum, carbon steel, stainless steel, fiberglass and other materials
• Optional materials of BUNA-N, FKM & other seating diaphragms can be provided when required
• ATEX and PED Approval
