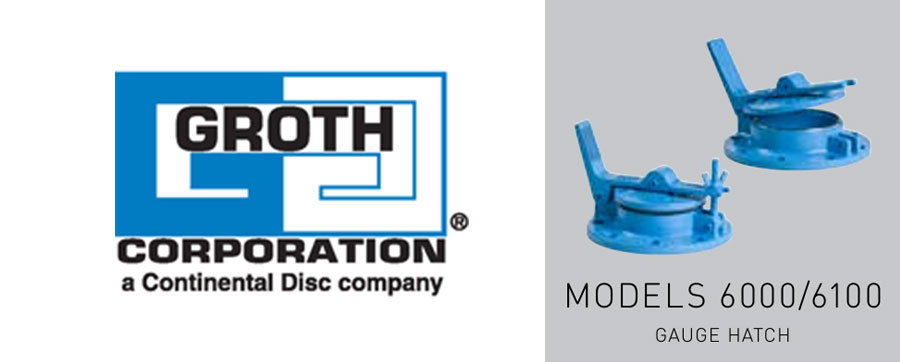

Models 6000/6100: Gauge Hatch​

FEATURES & BENEFITS

• Provides access for gauging or  obtaining product samples from storage tanks
• Design ensures uniform seating while providing convenient access for gauge product sampling
• Designed with serrated foot lever surface to avoid foot slippage when opening
• Model 6000 provides pressure relief as emergency venting
• Model 6100 incorporates positive cover hold down which assures premium tight seal on tanks with internal pressures up to 3 psig (207 mbarg)
• Fluoropolymer seating diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture

TECHNICAL DETAILS

• Sizes 4” through 10”  (DN100-DN250)
• 150# ANSI, PN10, PN16, JIS drilling classes available
• Available in aluminum, carbon steel, stainless steel & additional materials
• Available in free lift or lockdown cover
• Gasketed covers are  recommended on tanks with  high pressure settings
• Optional materials of BUNA-N, FKM & other seating diaphragms can be provided when required
• ATEX Approval (6100)
