Groth Corporation - Models 1720A & 1760A: Pipe-Away Pressure/Vacuum Relief Valve Same Size I/O
GROTH CORPORATION - a Continental Disc company

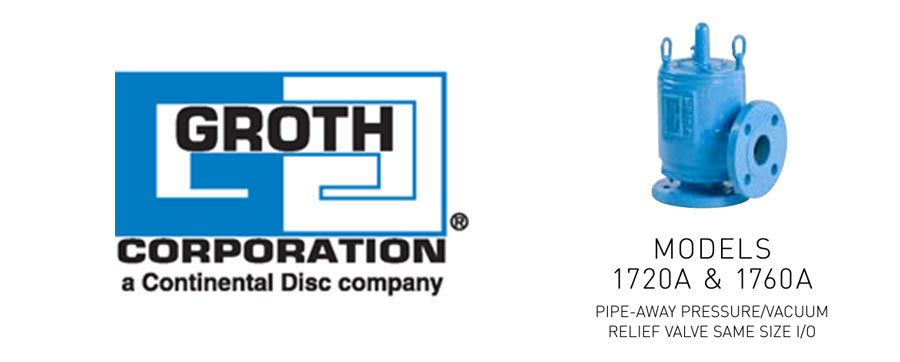

Models 1720A & 1760A: Pipe-Away Pressure/Vacuum Relief Valve Same Size I/O
FEATURES & BENEFITS
- Peripheral and central seat guides ensure reliable, repeatable performance
- A wide seat and air-cushion seal keeps leakage low long after the valve is put in service
- Self-draining housing body and drip rings protect seating surfaces from condensate and freezing, increasing operational reliability
- Fluoropolymer seating diaphragms are standard to minimize sticking caused by resinous vapors and atmospheric moisture
TECHNICAL DETAILS
- 2”, 3” and 4” sizes available (DN50-DN100)
- 150# ANSI, PN10, PN16, JIS drilling classes available
- Pressure settings 0.5 osig to 33 osig (2.15 mbarg to 142 mbarg)
- Vacuum settings 0.5 osig to 16 osig (2.15 mbarg to 68.9 mbarg)
- Available in carbon steel, stainless steel, fiberglass and other materials
- Optional materials of BUNA-N, FKM & other seating diaphragms can be provided when required
- ATEX and PED Approval
MORE INFO NEEDED ABOUT GROTH CORPORATION PRODUCTS?
Visit our Groth product page to find the full product selection guide (pdf) or visit our Groth Corporation - Industrial product selection guide.
