Groth Corporation - Model 7758A: Detonation Flame Arrester
GROTH CORPORATION - a Continental Disc company

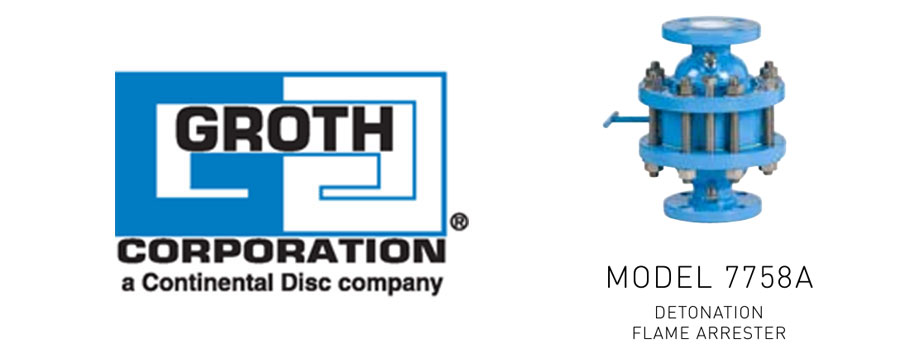

Series 7758A: Detonation Flame Arrester
FEATURES & BENEFITS
- Sintered wire mesh flame element efficiently and robustly protects product
- Compact design with high flow capacity and low pressure drop reduces installation and acquisition costs
- Flame bank assemblies are easily removed in-line for cleaning and maintenance and are economical to replace if necessary
TECHNICAL DETAILS
- Sizes 2”× 4” through 12”×20” (DN50-DN300 connections)
- 150# ANSI, PN10, PN16, JIS drilling classes available
- Housings are available in carbon steel, 316 SS and Alloy C276
- Elements are available in 316 SS, Alloy C276 and other corrosion resistant alloys
- Maximum operational pressure: 17.2 to 19.7 psia (1.188 to 1.36 bara) dependent on size
- Operational temperature range: -4 to 140°F (-20 to 60°C)
- Burn Time tBT: 5 to 30 minutes dependent on size
- Certified to ATEX Directive in compliance with EN ISO 16852:2010
- IEC gas group IIB3 (MESG >= 0.65 mm)
