Groth Corporation - Model 7661: Detonation Flame Arrester
GROTH CORPORATION - a Continental Disc company

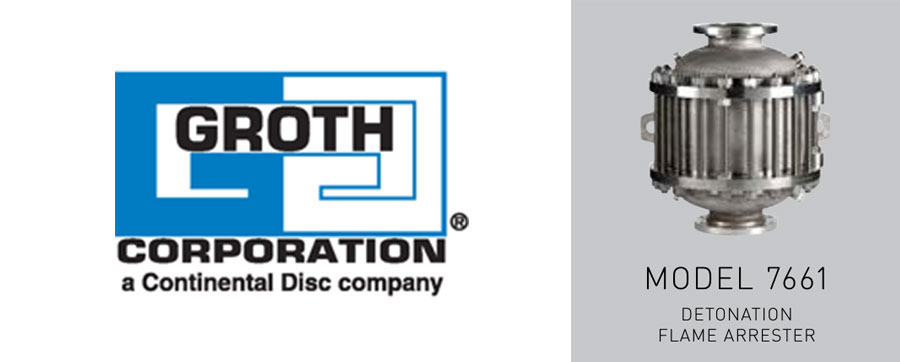

Model 7661: Detonation Flame Arrester
FEATURES & BENEFITS
- Housings are available in carbon steel, stainless steel or Alloy C276 and elements in stainless steel, Alloy C276 or other corrosion resistant alloys
- These arresters are compact with high flow capacity and low pressure drop
- Flame bank assemblies are easily removed in-line for cleaning and maintenance and are economical to replace if necessary
TECHNICAL DETAILS
- Sizes 4”x16” through 12”x30” (DN100-DN300 connections)
- 150# ANSI, PN10, PN16, JIS drilling classes available
- Standard materials of construction are carbon steel or stainless steel for bases and housings
- 316SS element is standard
- Unstable detonations
- Maximum operational pressure: 15.7 psia (1.08 bara)
- Operational temperature range: -4 to 140°F (-20 to 60°C)
- Burn Time tBT: 20 minutes
- Certified to ATEX Directive in compliance with EN ISO 16852:2010 (Flame bank assembly sizes 16”, 20” and 24”)
- Certified to USCG per 33 CFR Part 154 App. A Type II (flame bank assembly sizes 16”, 20”, 24” and 30”)
- IEC gas group IIA (MESG >= 0.90 mm)
