Groth Corporation - Model 12-TH: Thief Hatch
GROTH CORPORATION - a Continental Disc company

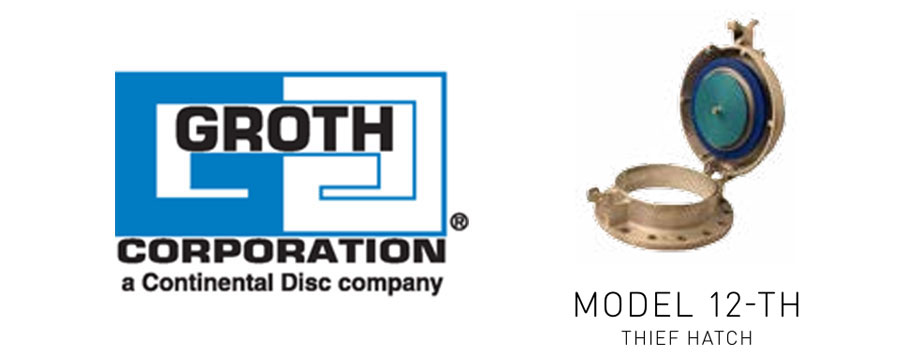

Model 12-TH: Thief Hatch
FEATURES & BENEFITS
- Ultra-tight sealing reduces product leakage and fugitive emissions
- Higher flow capacity to protect from excessive pressure build up
- Designed for easy maintenance, thus reducing downtime and lower operational cost
- Corrosion resistance can be enhanced with FKM soft goods and coating
- Direct replacement for any standard round API 12 thief hatch
- Incorporates a mechanical lock system to be used with a pad lock or lock out bar
TECHNICAL DETAILS
- Sizes 8”
- Bolting: API 12
- Available Pressure Settings: 4, 6, 8, 12, 16, 24 & 32 osig
- Available Vacuum Settings: 0.4, 0.9 & 3.5 osig
- Leak Rate: 1 SCFH air @ 90% of set pressure
- Optional: Polyester/PTFE Coating
- Accessories: Flange (base) Gasket, Mounting Kit
MORE INFO NEEDED ABOUT GROTH CORPORATION PRODUCTS?
Visit our Groth product page to find the full product selection guide (pdf) or visit our Groth Corporation - Industrial product selection guide.
