Groth Corporation - Model 7658A: Detonation Flame Arrester
GROTH CORPORATION - a Continental Disc company

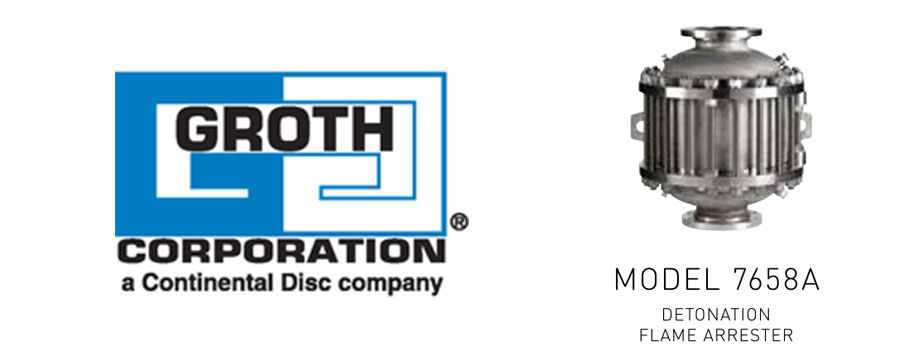

Series 7658A: Detonation Flame Arrester
FEATURES & BENEFITS
- Options for in-line cleaning & swing bolts for fast removal of the flame bank assembly
- Availability of multiple flame bank assembly diameters for each pipe size allows arrester to be sized to provide required flow capacity at minimum cost
- Proven spiral-wound, crimped ribbon, flame element provides reliable flame protection
- Modular design allows easy flame bank maintenance
- Compact design keeps weight & installation cost down
- Flame arrester element geometry maximizes flame quenching capability while minimizing pressure drop
TECHNICAL DETAILS
- Sizes 2”× 5” through 6”×12” (DN50-DN150 connections)
- 150# ANSI, PN10, PN16, JIS drilling classes available
- Standard materials of construction are carbon steel or stainless steel for bases and housings
- 316 SS element is standard
- Unstable detonations
- Maximum operational pressure: 15.7 psia (1.08 bara)
- Operational temperature range: -4 to 140°F (-20 to 60°C)
- Burn Time tBT: 10 minutes
- Certified to ATEX Directive in compliance with EN ISO 16852:2010
- Certified to USCG per 33 CFR Part 154 App. A Type II
- IEC gas group IIA (MESG >= 0.90 mm)
